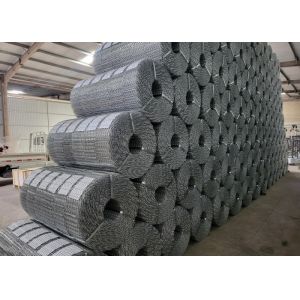

4Rolls/Bundle Galvanized Pipe Coating Welded Mesh For Chemical Processing Pipeline

Brand Name : H&F

Model Number : HF-250608

Certification : ISO-9001

Place of Origin : Hebei, China

MOQ : 26000 Square Meters

Price : USD2.94/M2~USD3.62/M2

Payment Terms : T/T,Western Union

Supply Ability : 62000 Square Meters per month

Delivery Time : According to order quantity

Packaging Details : 50 rolls per bundle or as customers' requirements

Product Name : Galvanized Pipe coating welded mesh

Key word : Pipeline reinforcement welded mesh

Material : Hot dipped Galvanized wire

Wire diameter : 1.6mm-2.8mm

Hole Size : 25.4mm x 67mm

Surface treatment : hot dipped galvanized

Exposed Wire Edge : ≤ 2.5 mm

Line wire quantity : 6lines or 8lines,10Lines

Middle line wire pitch : 25.4 mm

Zinc coated : 70gm²~300g / m² or custom

Cross wire pitch : 67 mm or 92.4 mm

Both sides line wire pitch : 25.4 mm or 50.8 mm

Hardness range : 485N/mm2~650N/mm2

Length : 140m,145m,280m etc

Width : 190.5mm

Roll Diameter : 700mm~1100mm

Load container way : In bulk or in pallet

Sample : Supply free sample to test

Contact Now

4Rolls/Bundle Galvanized Pipe Coating Welded Mesh For Chemical Processing Pipeline

Product Specifications

Attribute	Value
Product Name	Galvanized Pipe coating welded mesh
Key word	Pipeline reinforcement welded mesh
Material	Hot dipped Galvanized wire
Wire diameter	1.6mm-2.8mm
Hole Size	25.4mm x 67mm
Surface treatment	hot dipped galvanized
Exposed Wire Edge	≤ 2.5 mm
Line wire quantity	6lines or 8lines,10Lines
Middle line wire pitch	25.4 mm
Zinc coated	70gm²~300g / m² or custom
Cross wire pitch	67 mm or 92.4 mm
Both sides line wire pitch	25.4 mm or 50.8 mm
Hardness range	485N/mm2~650N/mm2
Length	140m,145m,280m etc
Width	190.5mm
Roll Diameter	700mm~1100mm
Load container way	In bulk or in pallet
Sample	Supply free sample to test

Product Description

Galvanized Pipe coating welded mesh, also called Pipeline reinforcement welded mesh, is specially designed for offshore oil and gas pipeline applications. Manufactured from high-grade quality galvanized wire with strong and uniform hole sizes, this product offers exceptional durability and performance.

Available in wire diameters of 1.8mm, 2mm, 2.2mm, 2.5mm, and 2.7mm, with line number options of 6, 8, or 10 lines. Roll length can be customized according to client requirements. The high tensile strength, anti-rust surface, and long service life make it ideal for Chemical Processing Pipeline projects.

Key Advantages

High grade quality
Standard wire diameter and roll width
Standard hole size
Uniform hole design
Anti-rust and Anti-corrosion
Strong welded construction
Sufficient roll length
High tensile strength
Long service life
Easy to use and store
Strong packaging
Suitable for shipping

Packaging Options

4 Rolls per bundle
Strong pallet packaging
Strong wooden box packaging
Bulk container loading
Custom packaging available

Applications

Water and Wastewater Pipeline
Chemical Processing Pipeline
River Bottom Gas & Oil Pipeline
Everglades Gas Pipeline
Subsea Gas & Oil Pipeline
